Pipe clamps hold pipes to walls, ceilings, strut channel and racks, and we stock the full range in Umm Al Quwain from ½" to 24" — EPDM rubber-lined clamps with M8 / M10 boss, heavy-duty two-bolt clamps, strut channel pipe clamps, saddle and U-bolt clamps — in zinc plated, hot-dip galvanized and stainless A2 / A4. Custom clamps are fabricated to drawing.

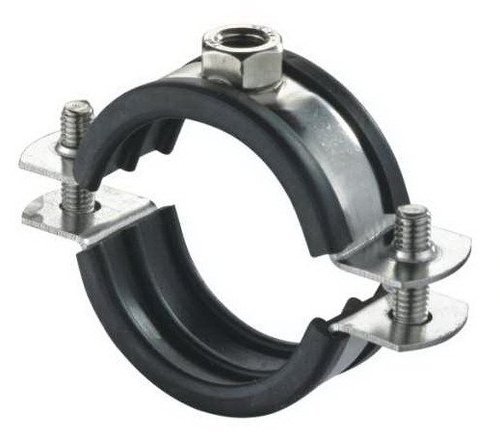

A pipe clamp is a two-piece steel band that closes around a pipe and fixes it to a support. Rubber-lined (EPDM) clamps isolate vibration and noise and are standard for building services; heavy-duty clamps with two bolts per side carry water-filled process lines; strut clamps snap into 41 mm channel; saddle clamps fix small pipes and conduits flat to a surface. Clamp size is chosen by pipe outside diameter, with the liner allowing for insulation where needed.
Applications
- Plumbing, chilled water and fire-fighting pipework
- HVAC refrigerant lines and condensate drains
- Process piping on racks and sleepers
- Electrical conduit and cable ducting
- Gas, compressed air and vacuum lines
- Insulated pipe supports (with insulation blocks)
Standards, grades & finishes
Clamps in zinc-plated steel (DIN 4109 acoustic type with EPDM liner), hot-dip galvanized to ISO 1461 for external, stainless A2 / A4 for plant rooms and coast. Sizes ½" to 24" (15 to 600 mm OD), bosses M8 / M10 / M12 with combi-nut for threaded rod. Heavy-duty clamps to DIN 3567 (Form A / B) and strut clamps to manufacturer system dimensions. Load ratings per manufacturer table; custom clamps fabricated and galvanized to order.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
