Shackles are stocked in Umm Al Quwain in the sizes rigging crews use every day — D shackles and bow shackles from 0.5 t to 55 t WLL, screw pin and safety (bolt, nut and cotter) types, hot-dip galvanized alloy steel with 6:1 safety factor, plus A4 stainless for marine use — each with its test certificate.

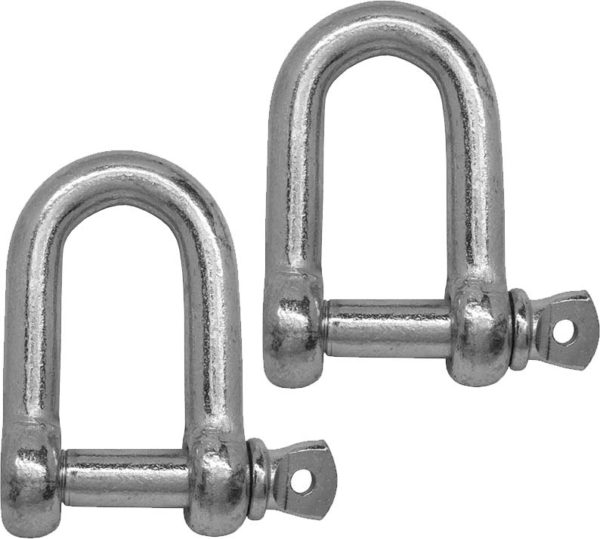

A D shackle (dee, chain shackle) is a narrow U-shaped link closed by a pin, used for straight-line pulls; a bow (anchor) shackle has a rounded body that accepts wider slings and multi-leg loads. Screw-pin shackles are quick to fit and suit non-permanent rigging; safety bolt-type shackles with a nut and cotter pin are for permanent or vibrating installations. Rated shackles carry the WLL, grade and manufacturer mark and are supplied with a certificate to EN 13889 or US Fed Spec RR-C-271.
Applications
- Lifting slings, hoists and crane rigging
- Container and cargo securing
- Guy wires, stays and cable anchors
- Mooring, marine and offshore rigging
- Towing, recovery and winching
- Structural cable and tension systems
Standards, grades & finishes
Shackles to EN 13889 Grade 6 (alloy) / US Fed Spec RR-C-271 Type IV, drop forged and heat treated, WLL 0.5 to 55 t (higher to order), safety factor 6:1, proof load 2 × WLL, hot-dip galvanized; stainless A4 (316) shackles to DIN 82101 for marine. Screw pin, safety bolt pin and round pin types. Manufacturer test certificate and CE marking supplied.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
