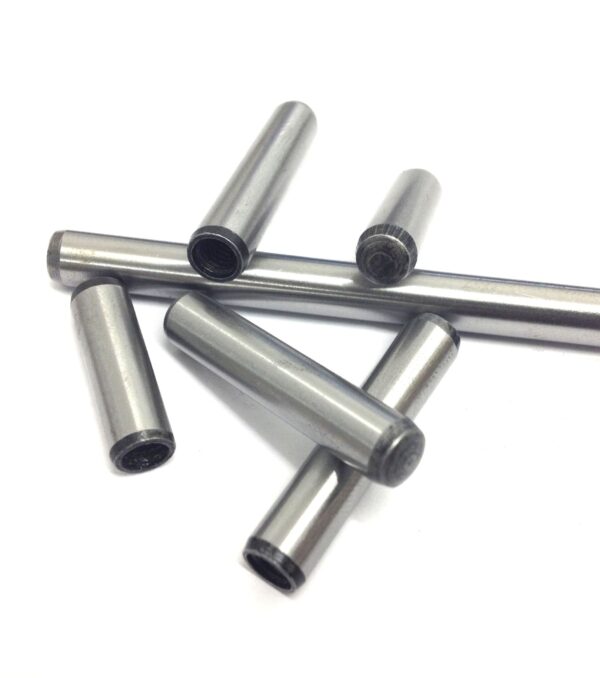

Dowel pins locate one part precisely against another — die sets, machine tables, gearbox housings — and we stock ISO 8734 / DIN 6325 hardened and ground pins in Umm Al Quwain from 2 to 30 mm diameter and 4 to 200 mm long, in alloy steel (60 HRC) and stainless A1, plus DIN 7 soft pins and extractable (tapped) pins.
A dowel pin is a solid cylindrical pin ground to a close tolerance (m6 for press fit, h6 for slip fit) with chamfered or radiused ends. Pressed into a reamed hole, it provides exact alignment and carries shear between the parts, so bolts only have to clamp. ISO 8734 Type A (DIN 6325) is through-hardened to 60 HRC for repeated assembly; DIN 7 is unhardened for general use; ISO 8735 has an internal thread for extraction from blind holes.
Applications
- Press tools, die sets and mould bases
- Machine tool tables, fixtures and jigs
- Gearbox, pump and engine housings
- Robot flanges and automation modules
- Precision assemblies in aerospace and defence
- Woodworking and furniture jigs
Standards, grades & finishes
Pins to ISO 8734 Type A / DIN 6325 (hardened, m6), ISO 2338 / DIN 7 (unhardened, h8 / m6), ISO 8735 / DIN 7979 (internal thread), material alloy steel 100Cr6 hardened 58–62 HRC, stainless A1 / A4 (ISO 2338). Diameters 2 to 30 mm, lengths 4 to 200 mm. Ground finish Ra ≤ 0.8 µm. Imperial ASME B18.8.2 to order.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
