DIN 580 is the lifting eye bolt standard used across the region, and we stock it in Umm Al Quwain from M6 to M36 in forged carbon steel and stainless A2 / A4 — zinc plated, hot-dip galvanized or plain — each size marked with its working load and supplied with a test certificate.

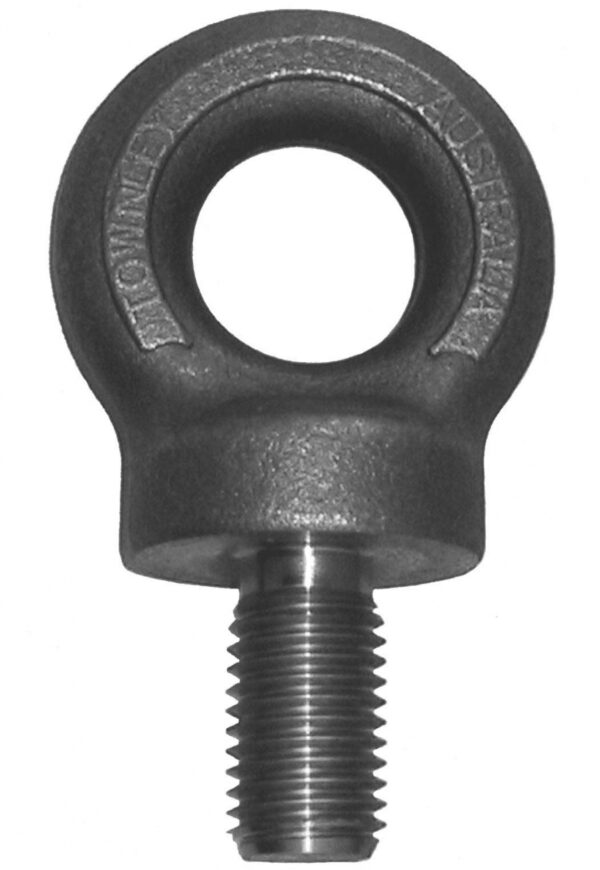

A DIN 580 lifting eye bolt is drop forged with a collar (shoulder) under the eye and a short, full-thread shank. Screwed down until the collar seats, it provides a certified lifting point on machines, motors, moulds, panels and enclosures. The working load is stamped on the eye and applies to a vertical lift; angled lifts are permitted with the load reduced per the DIN 580 table. The matching nut is the DIN 582 lifting eye nut.
Applications
- Lifting points on motors, gearboxes and pumps
- Moulds, dies and press tooling
- Switchgear, transformers and enclosures
- Precast concrete and steel fabrications
- HVAC units, chillers and generator sets
- Marine equipment and hatches (stainless)
Standards, grades & finishes
Eye bolts to DIN 580 / ISO 3266, drop forged from C15E carbon steel (normalized) or stainless A2 / A4, threads ISO 965 6g. Working load limit stamped on the eye; proof tested to 2.5× WLL. Finishes zinc plated to ISO 4042, hot-dip galvanized to ISO 1461 or plain stainless. Manufacturer certificate of conformity and test certificate supplied.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
