Shield anchors are heavy-duty expansion anchors for concrete, brick and block, and we stock the loose-bolt and projecting-bolt types in Umm Al Quwain from M6 to M30, zinc plated and hot-dip galvanized. They are the standard post-installed fixing for brackets, base plates and machinery on site.

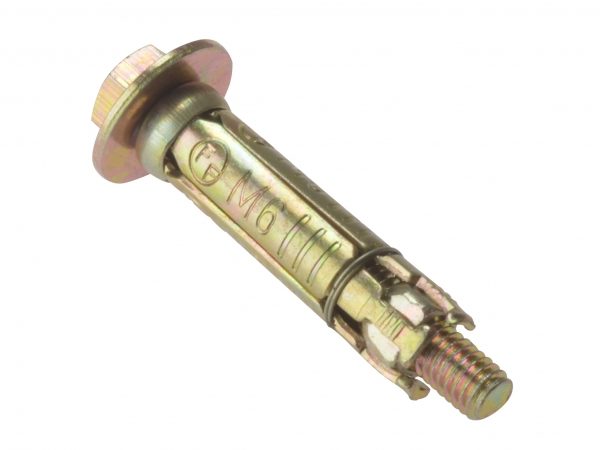

A shield anchor is a sleeved expansion anchor with a segmented shield that expands against the hole wall as the bolt or nut is tightened, drawing a cone into the shield. It gives high pull-out and shear capacity in solid substrates and is forgiving of hole tolerance. Loose-bolt shields take a separate hex bolt; projecting-bolt (stud) shields have a threaded stud and nut; eye and hook versions are available for cables.
Applications
- Steel column and base plate fixing to existing concrete
- Machinery, racking and equipment anchoring
- Cable tray, pipe support and bracket fixing
- Barriers, bollards and handrails
- Façade, cladding and canopy supports
- Retrofit and maintenance fixings
Standards, grades & finishes
Anchors to DIN / ISO manufacturer specification with carbon steel bolts class 5.8 / 8.8 and shields in zinc-plated steel; hot-dip galvanized and stainless A4 versions for external use. Sizes M6 to M30 with fixture thicknesses to suit. Load data per manufacturer technical sheet; setting requires a clean hole of the specified diameter and depth.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
