Countersunk Allen bolts sit flush with the surface, which is why machine builders, panel makers and glazing contractors specify them. We stock DIN 7991 / ISO 10642 from M5 to M36 in grade 10.9, 12.9 and stainless A2 / A4 in Umm Al Quwain, black, zinc plated or plain stainless, with matching nuts and washers.

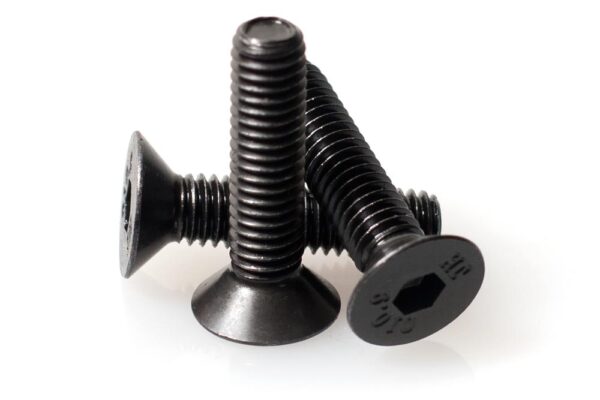

A countersunk Allen bolt (flat head socket cap screw) has a conical 90° head with a hexagon socket, driven with an Allen key. When tightened into a countersunk hole the head is flush with or slightly below the surface, giving a clean finish and no snag point. The socket drive allows high torque in a small head and is ideal where a wrench cannot reach.
Applications
- Machine guards, panels and covers
- Mould, die and tooling assembly
- Sliding rails and linear guides
- Handrail, balustrade and glazing fittings
- Solar mounting and electrical enclosures
- Automotive and equipment brackets
Standards, grades & finishes
Screws to DIN 7991 / ISO 10642, property class 10.9 and 12.9 to ISO 898-1, stainless A2-70 and A4-70 to ISO 3506. Threads ISO 965 6g coarse; fine thread on request. Finishes black oxide, zinc plated, hot-dip galvanized (M8+) or plain stainless. Available with Torx (ISO 14581) drive.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
