Lifting eye nuts give a certified lifting point on the end of a stud, eye bolt or threaded rod, and we stock DIN 582 in Umm Al Quwain from M6 to M48 in forged carbon steel and stainless — zinc plated, hot-dip galvanized or plain — with working loads stamped and test certificates supplied.

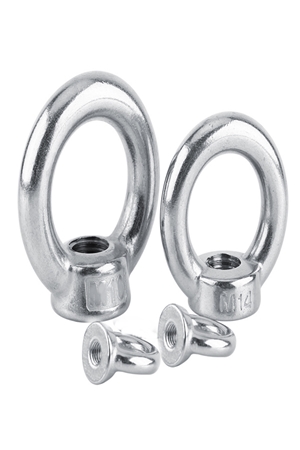

A DIN 582 lifting eye nut is a drop-forged nut with an integral eye and a collar, the companion to the DIN 580 eye bolt. Screwed fully down onto a stud or rod so the collar seats, it gives a lifting point with a rated working load for vertical lifts and reduced loads at angles per the DIN 582 table. Common uses are lifting machines by their foundation studs, panels and precast elements on threaded inserts, and as anchor points for guys and stays.
Applications
- Lifting machines and equipment via studs
- Precast concrete lifting inserts
- Transformers, switchgear and generator sets
- Moulds, dies and heavy tooling
- Guy, stay and cable anchor points
- Marine and offshore fittings (A4)
Standards, grades & finishes
Eye nuts to DIN 582 / ISO 3266, drop forged C15E carbon steel (normalized) or stainless A2 / A4, threads ISO 965 6H. Working load limit stamped; proof tested 2.5 × WLL. Finishes zinc plated to ISO 4042, hot-dip galvanized to ISO 1461, plain stainless. Certificate of conformity and test certificate with each delivery.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
