Pal nuts are stamped spring-steel locking nuts used over a standard nut to stop it loosening, or on their own to hold light parts on a stud or pin. We stock them in Umm Al Quwain from M4 to M30 in zinc-plated and galvanized spring steel, brass and stainless.

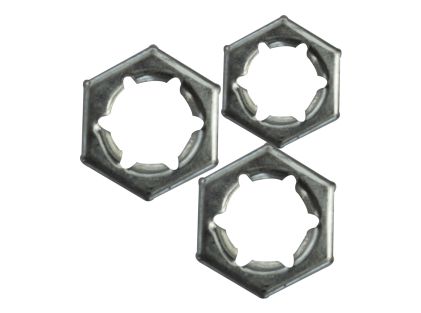

A pal nut (palnut, speed nut) is a single-thread nut pressed from spring steel with a cupped rim. Screwed onto a bolt above a standard nut and tightened a quarter turn, its arched form deflects and locks the thread, holding the primary nut against vibration. Pal nuts are cheap, light and fast to fit, and are also used alone on push-on studs for trims, panels and mouldings.
Applications
- Locking hex nuts on vehicles and machinery
- Electrical cabinets, meters and panels
- Light fittings, signage and trims
- Appliance and HVAC assembly
- Furniture and fixture hardware
- Push-on retention of pins and studs
Standards, grades & finishes
Pal nuts in spring steel (C67S / SAE 1050) heat treated, zinc plated to ISO 4042 or hot-dip galvanized; brass CW508L; stainless 301 / 304. Sizes M4 to M30 and #6 to 1" UNC / UNF. Regular, thick and washer-faced (flanged) types. Note: single-thread nuts are not load-carrying — use as a lock nut or for light retention only.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
