Flange nuts with a serrated face grip the surface and resist loosening under vibration without a separate washer, which is why they are standard on machinery, vehicles and steel framing. We stock DIN 6923 / ISO 4161 in Umm Al Quwain from M5 to M30, class 8 and 10, zinc plated and hot-dip galvanized.

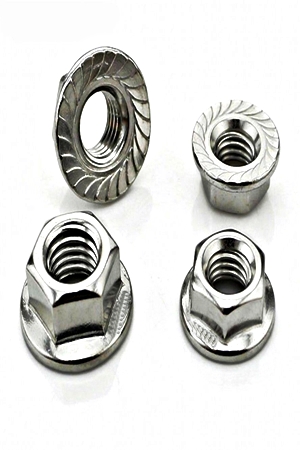

A hex flange nut has an integral washer flange under the hex that spreads clamping load over a larger area and protects the surface. The serrated version has radial ribs on the flange face that bite into the mating surface, providing a prevailing resistance to rotation. Plain-flange nuts are used on painted or soft materials where the serrations would mark. Flange nuts install faster than nut-plus-washer and cannot be assembled without their washer.
Applications
- Vehicle chassis, bus and truck bodies
- Conveyors, screens and vibrating equipment
- Steel framing, purlins and cladding rails
- Pumps, motors and gearbox mounting
- Solar structures and cable ladders
- Modular fencing and playground equipment
Standards, grades & finishes
Nuts to DIN 6923 / ISO 4161 (serrated or plain), property class 8 and 10 to ISO 898-2, stainless A2 / A4, threads ISO 965 6H. Finishes zinc plated to ISO 4042, zinc flake, hot-dip galvanized to ISO 10684. Matching DIN 6921 flange bolts stocked.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
