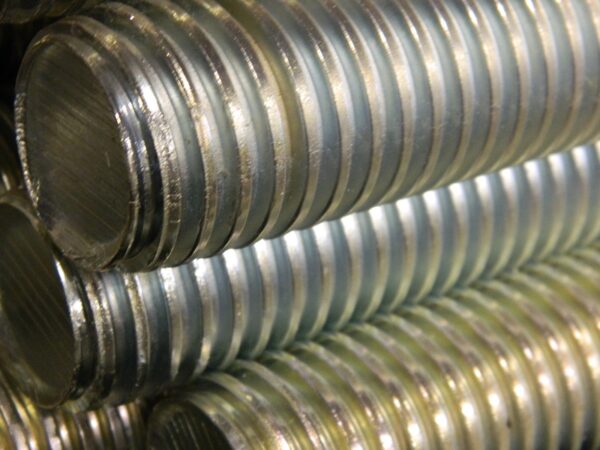

DIN 975 threaded rod is the raw stock our studs are cut from, and we hold it in Umm Al Quwain in 1 m and 3 m lengths from M6 to M52 — carbon steel 4.6, 8.8 and 10.9, stainless A2 and A4, plain, zinc plated or hot-dip galvanized. We cut, chamfer and supply studs to any length from it in-house.
Threaded rod (all-thread, threaded bar) is a straight bar threaded along its entire length. DIN 975 covers the rod itself and DIN 976 the studs cut from it. It is the universal material for hangers, anchors, tie rods and site-made studs: cut to length, add nuts and washers, and it becomes a fastener for almost any application.
Applications
- Pipe and duct hangers, HVAC supports
- Cable tray, ceiling and fire-fighting brackets
- Chemical anchor and resin anchor rods
- Formwork tie rods and scaffolding
- Site-cut studs and extension rods
- Electrical, solar and telecom mounting
Standards, grades & finishes
Rod to DIN 975 / DIN 976-1, thread ISO 965 6g metric coarse (fine on request), property class 4.6, 5.8, 8.8, 10.9 to ISO 898-1, stainless A2-70 and A4-80 to ISO 3506. Also available in UNC to ASME B1.1. Finish self colour, electro zinc plated (blue / yellow), hot-dip galvanized to ISO 1461. Supplied with mill certificates.
Anchor bolts, studs and plate washers are manufactured in our own ISO 9001:2015 plant in Emirates Modern Industrial Area, Umm Al Quwain, with calibrated in-house dimensional and thread inspection. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
