Wedge lock washers are the answer where nyloc nuts and spring washers still loosen — vibrating screens, crushers, rail, wind and heavy transport. We stock the Nord-Lock type in Umm Al Quwain from M3 to M42 in zinc-flake coated steel and 316L stainless, in standard and large outer diameter.

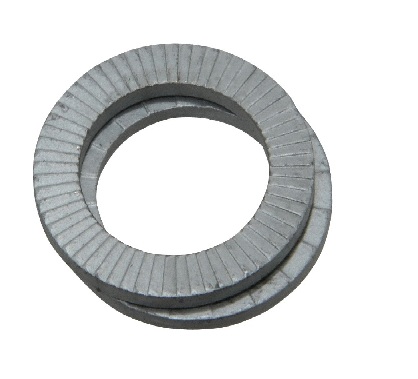

A wedge lock washer is a pair of hardened washers with cam faces on the inside and radial teeth on the outside. The cam angle is greater than the thread pitch, so any attempt by the bolt to rotate loose forces the pair apart, increasing bolt tension rather than releasing it. The teeth grip the bolt head and mating surface. Wedge lock washers are proven to Junker vibration test and are reusable.
Applications
- Vibrating screens, crushers and mills
- Rail, rolling stock and track fixings
- Wind turbine and tower bolting
- Trucks, trailers, buses and off-road equipment
- Pumps, compressors and reciprocating machinery
- Cranes, hoists and mining equipment
Standards, grades & finishes
Washer pairs to DIN 25201 Part 4 and Nord-Lock dimensions, hardened steel with Delta Protekt zinc flake coating (1,000 h salt spray) or 316L stainless (A4), standard (NL) and large outer diameter (NLsp) for slotted holes. Sizes M3 to M42 (M45 to M130 to order). Junker test reports available. Reusable; install with the cams facing each other.
This item is imported from approved mills and held in stock in our Umm Al Quwain warehouse alongside the anchor bolts, studs and plate washers we manufacture ourselves, so complete bolt sets ship from one source. Tensile, hardness and chemical testing is carried out by independent UAE-accredited laboratories, and EN 10204 3.1 certificates are issued with every batch. We supply across the GCC, MENA and Africa.
